CNC Router UpDate

Little late with CNC Router Build update or should that be “A LOT LATE” ??? Lots of family activities kept me busy,  but the CNC build progressed along nicely through it all, just a little slower than planned. Though still not finished, the  cutting is coming along quite nicely.

IMG_3986
Z-axis



IMG_3990
X-axis side plates ready
IMG_4060
And now a little help from 3D printer.
IMG_4067
3D printed V-Slot aluminum extrusion Connectors.
IMG_4068
V-Slot connectors ready to install in X-axis aluminum extrusion to bond 20×60 beams into one.
IMG_4076
X and Z axis ready to install on y-axis
IMG_4077
Another view Z and Y axis
IMG_4079
Little OX coming together.
IMG_4081
OX a little closer.
IMG_4082
Ready to wire up.
IMG_4173
And finely the first cut!
IMG_2765
Since it’s almost Christmas?
IMG_2814
It’s Santa with a little help from JOY!
IMG_4353
This would be the second test cut.
IMG_2812
The third test an English Springer Spaniel.



IMG_4372
And now a piece of fire Wood.

IMG_4365

IMG_4366

IMG_4368

IMG_4374

IMG_4375
Fire Wood to Art?
IMG_4434
Now a box for Joy!

IMG_4436

IMG_4438

IMG_4440IMG_4445

IMG_4452

IMG_4455

IMG_4460

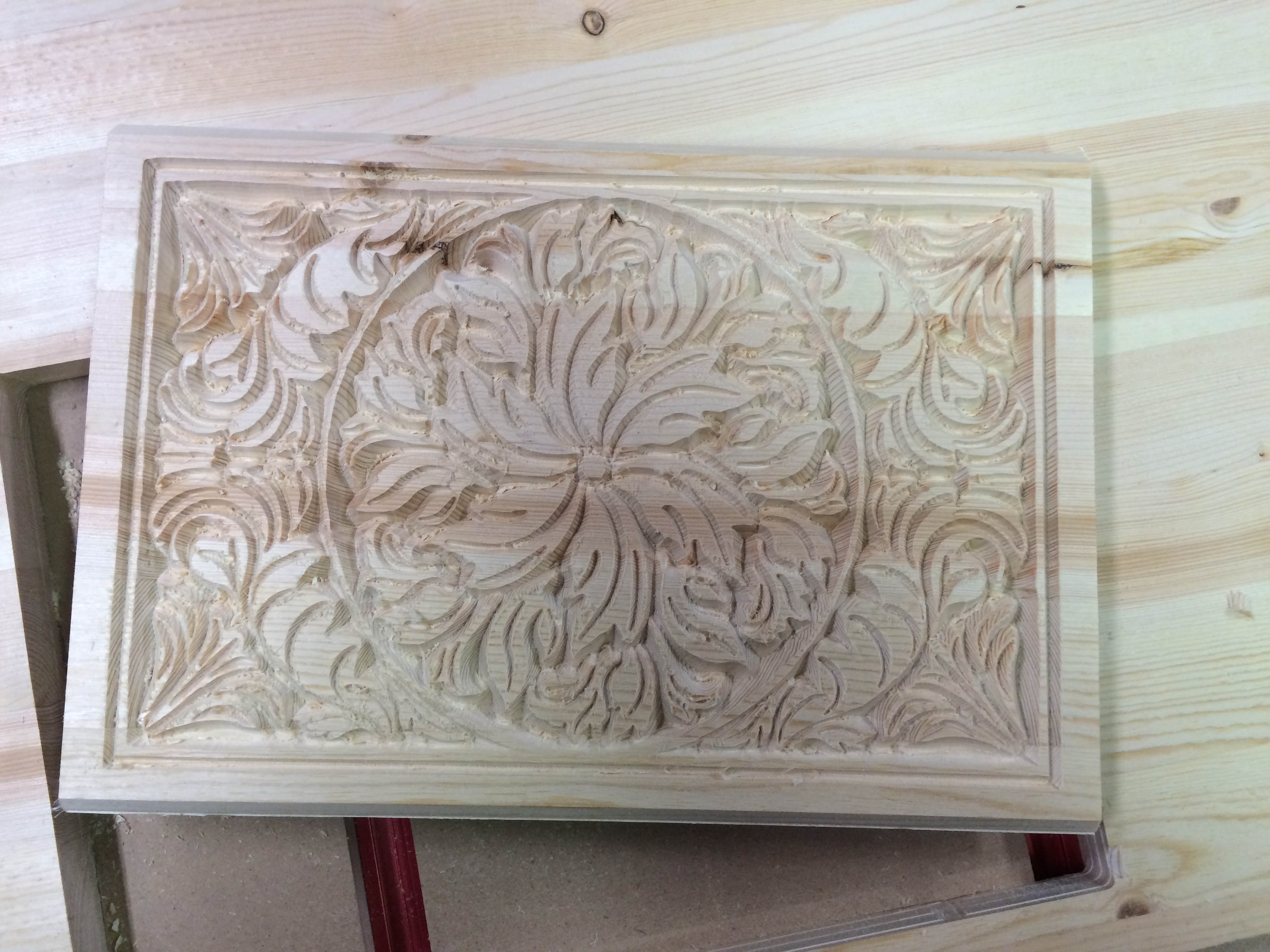

IMG_4463

IMG_4465

IMG_4466

IMG_4467
And Joy has a new box.
IMG_4469
“The Paradise Box” The plan is a free download from Vectric software. http://www.vectric.com/cool-stuff/projects.html

Well that brings us pretty much up to date. I still need to clean up the wiring, install e-stop and maybe beef up Z-axis a little more; but all and all it’s a good little machine. My wife says I’m using the wrong adjective… GREAT little machine is more accurate, according to her.

5 thoughts on “CNC Router UpDate”

  1. So……Larry……how did those little pieces that you did on the 3D printer work out on the “X” axis? Everyone has been talking about the movement between the two 20X60 extrusions. I’ve been looking for something to stiffen that up for when I get to build mine. Out of the country right now but will return in mid May……..then I’ll get started on my own OX.

    Thank you,
    Randy

  2. Hi
    I must say it’s quite impressive to see the result of this machine. So far, what cnc bit are you using ?
    And is there any upgrade that could help the machine for … the precision, better tool cutter or so..?

    Thanks

    1. That was some time ago, but I believe the bit was “CMT 858.001.11 60 degree Laser Point Bit, 1/4-Inch Shank, 1/2-Inch Diameter, Carbide-Tipped” I pick up on Amazon. As for precision, the little machine works quite well but anything to make it more solid. Would improve it, or speed of cut anyway.
